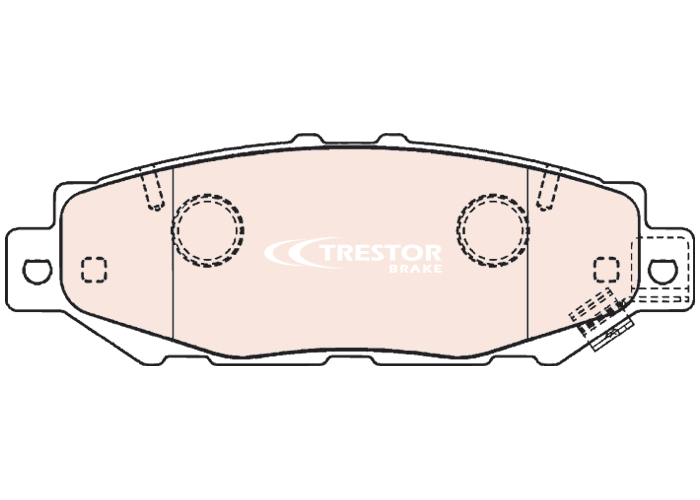

Rear

TDB1396

Type

Disc Pad Set

Dimension

4 Pads 122 x 41 x 15 mm

Structure

LH Inner + RH Inner + 2 Outer Pads

FMSI

7452-D572

WVA

21491, 24130, 24131

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Lexus

GS300 (1993 - March 2005)

View all variants

3.0 V6 Sedan [GRS190] (4-Pot 334mm Disc / 310mm Disc)
GRS190R 3.0 V6 4 Door Sedan
JZS160R
JZS160R Solid Disc

Toyota

Aristo (October 1991 - August 1997)

View all variants

JZS147 3.0 (15 inch Wheels)
JZS147 3.0 Twin Turbo (16 inch Wheels)
JZS160 3.0 (16 inch Wheels)
JZS161 3.0 Twin Turbo (16 inch Wheels)
UZS147 4.0 V8 (16 inch Wheels)

Toyota

Celsior (August 1992 - October 1994)

View all variants

UCF10, UCF11
UCF10, UCF11 (296mm Disc / Disc)
UCF10, UCF11 (315mm Disc / Disc)
UCF20, UCF21
UCF30, UCF31

Toyota

Chaser (Japan) (September 1996 - August 1998)

View all variants

GX100, LX100, SX100 (early)
GX100, LX100, SX100 (late)
GX105 4WD
GX60 (Disc / 229mm Drum)
GX61, MX61 (Disc / Disc)
GX81, JZX81, MX83 (Disc / Disc)
GX90, LX90, SX90 (Disc / Disc)
JZX100 Roulant, Tourer
JZX100, 101, 105 (Not Roulant, Tourer)
JZX90 Tourer Only (Disc / Disc)
JZX90, 91, 93 (Disc / Disc)
X70 Series (Disc / 229mm Drum)
X70 Series (Disc / Disc)
X80 Series (Disc / 229mm Drum)

Toyota

Corona Mark II (September 1996 - October 2000)

View all variants

2.0 GX100, 2.4 LX100 (Disc / Disc)
2.0 GX105; 2.5 JZX105 (AWD) (Disc / Disc)
2.0 GX110; 2.5 JZX110 G, IR-S (Disc / Disc)
2.0 GX115; 2.5 JZX115 (AWD) (Disc / Disc)
2.0 GX71, MX71 (Disc / Disc)
2.0 GX71, MX71 (Disc / Drum)
2.0 GX81, 3.0 MX81, 2.4 RX81, 2.5 JZX81 (Disc / Disc)
2.0 GX90, 2.4 LX90, 1.8 SX90 (Disc / Disc)
2.2 SXV20 Wagon / Van (Disc / Disc)
2.4 LX70, (Aust) (Disc / Drum)
2.4 LX70, 2.0 RX70, 1.8 SX70, YX70 (Japan) (Disc / Drum)
2.4 LX76, 1.8 YX76, 2.0 YX78, Van (Disc / Drum)
2.4 LX80, RX80, 1.8 SX80, 2.0 YX80 (Disc / Disc)
2.4 LX80, RX80, 1.8 SX80, 2.0 YX80 (Disc / Drum)
2.4 RX72, 2.0 YX72, (Japan) (Disc / Drum)
2.5 JZX100 G, S; 3.0 JZX101 (Disc / Disc)
2.5 JZX100 V (Disc / Disc)
2.5 JZX110 V, G-tb (Disc / Disc)
2.5 JZX90, 3.0 JZX91 (Disc / Disc)
2.5 JZX93 AWD (Disc / Disc)
2.5 MCV21, 3.0 MCV20 Wagon/Van (Disc / Disc)
2.8 MX72, (Aust) (Disc / Drum)
GX60, 61, LX60, RX80 (Disc / Disc)
GX60, 61, LX60, RX80 (Disc / Drum)
LX67, TX67, Van (Disc / Drum)
MX62, RX62, TX62 (Disc / Disc)
MX62, RX62, TX62 (Disc / Drum)

Toyota

Cressida (September 1996 - October 2000)

View all variants

2.0 GX100, 2.4 LX100 (Disc / Disc)
2.0 GX105; 2.5 JZX105 (AWD) (Disc / Disc)
2.0 GX110; 2.5 JZX110 G, IR-S (Disc / Disc)
2.0 GX115; 2.5 JZX115 (AWD) (Disc / Disc)
2.0 GX71, MX71 (Disc / Disc)
2.0 GX71, MX71 (Disc / Drum)
2.0 GX81, 3.0 MX81, 2.4 RX81, 2.5 JZX81 (Disc / Disc)
2.0 GX90, 2.4 LX90, 1.8 SX90 (Disc / Disc)
2.2 SXV20 Wagon / Van (Disc / Disc)
2.4 LX70, (Aust) (Disc / Drum)
2.4 LX70, 2.0 RX70, 1.8 SX70, YX70 (Japan) (Disc / Drum)
2.4 LX76, 1.8 YX76, 2.0 YX78, Van (Disc / Drum)
2.4 LX80, RX80, 1.8 SX80, 2.0 YX80 (Disc / Disc)
2.4 LX80, RX80, 1.8 SX80, 2.0 YX80 (Disc / Drum)
2.4 RX72, 2.0 YX72, (Japan) (Disc / Drum)
2.5 JZX100 G, S; 3.0 JZX101 (Disc / Disc)
2.5 JZX100 V (Disc / Disc)
2.5 JZX110 V, G-tb (Disc / Disc)
2.5 JZX90, 3.0 JZX91 (Disc / Disc)
2.5 JZX93 AWD (Disc / Disc)
2.5 MCV21, 3.0 MCV20 Wagon/Van (Disc / Disc)
2.8 MX72, (Aust) (Disc / Drum)
E.F.I. 2.8 Sedan & Wagon
GX60, 61, LX60, RX80 (Disc / Disc)
GX60, 61, LX60, RX80 (Disc / Drum)
LX67, TX67, Van (Disc / Drum)
MX32, MX36 Sedan & Wagon
MX62, MX63, RX62, TX62 (Disc / Disc)
MX62, MX73, RX62, TX62 (Disc / Drum)
MX73 GLi, GLXi
MX83
MX83, Comfort

Toyota

Cresta (September 1996 - October 2000)

View all variants

2.0 GX100, 2.4 LX100 (Disc / Disc)
2.0 GX105; 2.5 JZX105 (AWD) (Disc / Disc)
2.0 GX71, MX71 (Disc / Disc)
2.0 GX71, MX71 (Disc / Drum)
2.0 GX81, 3.0 MX81, 2.5 JZX81 (Disc / Disc)
2.0 GX90, 2.4 LX90, 1.8 SX90 (Disc / Disc)
2.4 LX70, 1.8 SX70, YX70 (Disc / Drum)
2.4 LX80, 1.8 SX80, 2.0 YX80 (Disc / Disc)
2.4 LX80, 1.8 SX80, 2.0 YX80 (Disc / Drum)
2.5 JZX100 G, S; 3.0 JZX101 (Disc / Disc)
2.5 JZX100 V (Disc / Disc)
2.5 JZX90, 3.0 JZX91 (Disc / Disc)
2.5 JZX93 AWD (Disc / Disc)

Toyota

Crown (October 1991 - August 1995)

View all variants

2.0 GS151 Hardtop, GS151H Sedan (Petrol)
2.0 GS151, 2.4 LS151 Sedan (Early)
2.0 GS151, 2.4 LS151 Sedan (Late - Not Ranged)
2.0 GS151H Sedan (LPG)
2.4 LS151 Hardtop, 2.4 LS151H Sedan
2.5 JZS151, 153, 3.0 JZS155 Sedan and Majesta
2.5 JZS151, 153, 3.0 JZS155, 4.0 JZS157 Hardtop
2.8 Royal Saloon [MS132,135,137]
3.0 JZS147, 149 (Disc / Disc)
4.0 UZS141, 147 (Disc / Disc)
4.0 UZS143, 145 (Disc / Disc)
4.0 UZS151, 157 Majesta
4.0 UZS155 Majesta
GS141, LS141, JZS141,143, 145 (Disc / Disc)
LS130
MS55, MS65, MS85 (Australian Model)
MS83, MS85
MS85, MS111
S110 Series (Disc / 254mm Drum)
S110 Seris (Disc / Disc)
S120 Series (Disc / 254mm Drum)
S120 Series (Disc / Disc)
S130 Series (Disc / 254mm Drum)
S130 Series (Disc / Disc)

Toyota

Grand HiAce H10 Series (1995-2002) (August 1995 - April 2002)

View all variants

2.7 [RCH11] (Disc / Disc)
2.7 [RCH11] (Disc / Drum)
3.0td [KCH10, KCH16] (Disc / Disc)
3.0td [KCH10, KCH16] (Disc / Drum)
3.0td [KCH12] (Disc / Drum)
3.4 V6 [VCH10, VCH16] (Disc / Disc)

Toyota

Granvia H10 Series (1995-2002) (August 1995 - April 2002)

View all variants

2.7 [RCH11] (Disc / Disc)
2.7 [RCH11] (Disc / Drum)
3.0td [KCH10, KCH16] (Disc / Disc)
3.0td [KCH10, KCH16] (Disc / Drum)
3.0td [KCH12] (Disc / Drum)
3.4 V6 [VCH10, VCH16] (Disc / Disc)

Toyota

Hiace Touring H40 (1997-2002) (April 1997 - April 2002)

View all variants

2.0 [RCH42] [Disc / Disc]
2.7 [RCH41,RCH47] [Disc / Disc]
3.0d [LXH43,LXH49] [Disc / Disc]
3.0td [KCH40,KCH46] [Disc / Disc]

Toyota

Soarer (2001 - 2010)

View all variants

Soarer (Japan) (Disc-Akebono-144 x 64 / Disc) [UZZ40]
Soarer (Japan) (Disc-Akebono-144 x 68 - Not DB1395 / Disc)
Soarer (Japan) (Disc-Sumitomo-141mm Wide / Disc)

Toyota

Supra (1993 - 2002)

View all variants

JZA80 3.0 (Import) Twin Piston Caliper
MA70 3.0 (Import)
Turbo MA71 3.0
Twin Cam, Soarer

Toyota

Crown

4.0 UZS155 Majesta

Front

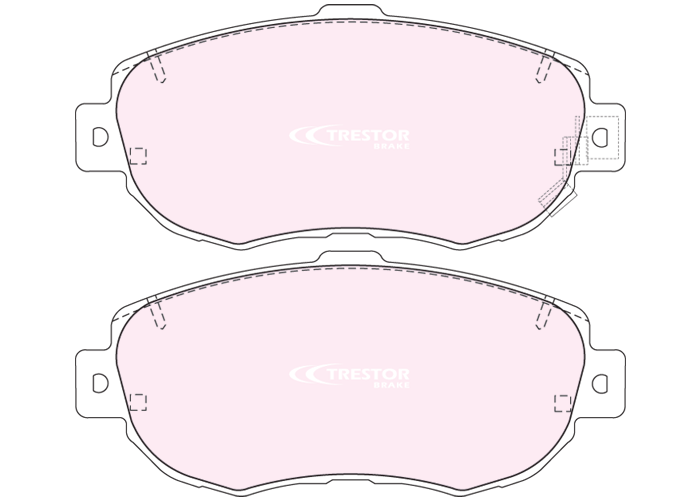

TDB1395

Disc Pad Set

4 Pads 144 x 64 x 17 mm

LH Inner + RH Inner + 2 Outer Pads

7495-D619

21490, 23848, 23849

Vehicle Compatibility

GS300 (1993 - March 2005)

GS400 (1998 - 2000)

IS (1998-05) [E10] (August 2001)

Altezza (October 1998 - July 2005)

Aristo (August 1993 - August 1997)

Celsior (August 1992 - October 1994)

Chaser (Japan) (October 1992 - September 1996)

Corona Mark II (October 1992 - September 1996)

Cressida (October 1992 - September 1996)

Cresta (October 1992 - September 1996)

Crown (October 1991 - August 1995)

Soarer (2001 - 2010)

Supra (1993 - 2002)

Rear

TDB1396

Disc Pad Set

4 Pads 122 x 41 x 15 mm

LH Inner + RH Inner + 2 Outer Pads

7452-D572

21491, 24130, 24131

Vehicle Compatibility

GS300 (1993 - March 2005)

Aristo (October 1991 - August 1997)

Celsior (August 1992 - October 1994)

Chaser (Japan) (September 1996 - August 1998)

Corona Mark II (September 1996 - October 2000)

Cressida (September 1996 - October 2000)

Cresta (September 1996 - October 2000)

Crown (October 1991 - August 1995)

Grand HiAce H10 Series (1995-2002) (August 1995 - April 2002)

Granvia H10 Series (1995-2002) (August 1995 - April 2002)

Hiace Touring H40 (1997-2002) (April 1997 - April 2002)

Soarer (2001 - 2010)

Supra (1993 - 2002)
