Subaru

Outback

3.6R MPI Wagon

Search by Vehicle
Search by Part Number

Front

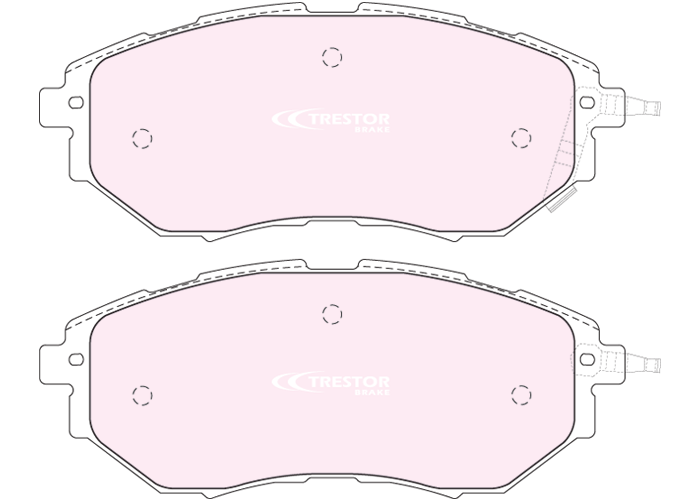

TDB1722

Type

Disc Pad Set

Dimension

4 Pads 157 x 64 x 17 mm

Structure

LH Inner + LH Outer + RH Inner + RH Outer

FMSI

7983-D1078

WVA

24222, 24223, 24224, 24225

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Subaru

Forester (March 2013)

View all variants

4 Piston Subaru Caliper Upgrade (Sumitomo)
All
GT,GX,Limited,RX
X, XS, XT, 2.5
XT, 2.0, 2.5 [SJ] (Akebono Calipers)

Subaru

Legacy (2003 - 2009) [BL, BP] (2004 - 2005)

View all variants

2.0
2.0 (USA), 2.5, 3.0 (USA)
BL, BP

Subaru

Legacy (2009 - 2014) [BM, BR] (2009 - 2014)

View all variants

2.0, 2.5 (not GT) (Fr. 277mm Disc / Rr. 286 Solid Disc)
2.5GT, 3.6 (Fr. 316mm Disc / Rr. 290 Vented Disc)

Subaru

Legacy (2014 - ) [BN, BS] (2014)

View all variants

2.0, 2.5, 3.6

Subaru

Levorg (2014 - ) (2014)

View all variants

1.6, 2.0

Subaru

Liberty (2003 - 2009) [BL, BP] (September 2003 - July 2004)

View all variants

2.0 B4 GT
2.0 B4 Twin Turbo
2.0 GT
2.5 GT-B Sti (Brembo Calipers F & R)
3.0 R, R-B
4D Sedan & Wagon 2.5
GT 2.5 TMPI Sedan Wagon

Subaru

Liberty (2009 - 2014) [BM, BR] (2009)

View all variants

2.5 MPI Sedan, Wagon
2.5 MPI Wagon
3.6R 3.6X Sedan

Subaru

Liberty (2014 - ) [BN, BS] (2014)

View all variants

2.5, 3.6

Subaru

Outback (2003)

View all variants

2.0D
2.5 BG9
2.5 BH9, 3.0 BHE
2.5 BP9, 3.0 BPE
2.5, 3.0
3.0
3.6R MPI Wagon

Subaru

Outback (2014 - ) [BS] (2014)

View all variants

2.0, 2.0td, 2.5, 3.6

Subaru

Tribeca (November 2006 - November 2007)

View all variants

3.0, 3.6 Wagon

Subaru

WRX (2014)

View all variants

2.0t AWD Sedan (Fr Akebono 316mm Disc / Rr 316mm Disc)

Rear

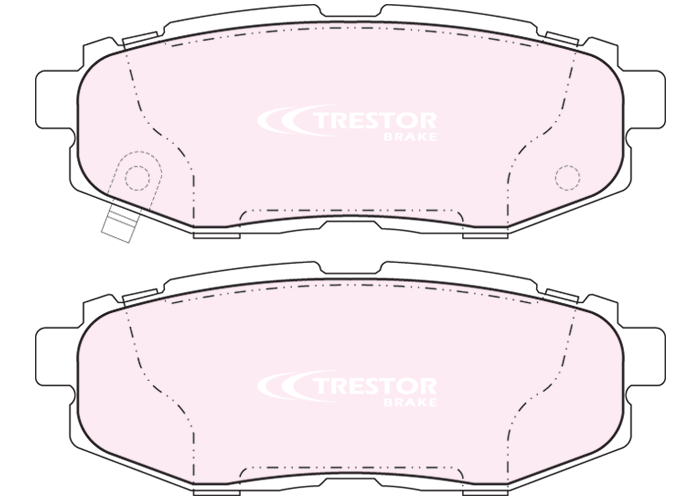

TDB1789

Type

Disc Pad Set

Dimension

4 Pads 111 x 40 x 17 mm

Structure

1 Pad with Wear Sensor + 3 Plain Pads

FMSI

8231-D1124

WVA

24854, 24855

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Subaru

BRZ (2012)

View all variants

2.0 Coupe

Subaru

Legacy (2009 - 2014) [BM, BR] (2009 - 2014)

View all variants

2.0, 2.5 (not GT) (Fr. 277mm Disc / Rr. 286 Solid Disc)
2.5GT, 3.6 (Fr. 316mm Disc / Rr. 290 Vented Disc)

Subaru

Liberty (2003 - 2009) [BL, BP] (2009)

View all variants

2.0 B4 GT
2.0 B4 Twin Turbo
2.0 GT
2.5 GT-B Sti (Brembo Calipers F & R)
3.0 R, R-B
4D Sedan & Wagon 2.5
GT 2.5 TMPI Sedan Wagon

Subaru

Liberty (2009 - 2014) [BM, BR] (2009)

View all variants

2.5 MPI Sedan, Wagon
2.5 MPI Wagon
3.6R 3.6X Sedan

Subaru

Outback (2010)

View all variants

2.0D
2.5 BG9
2.5 BH9, 3.0 BHE
2.5 BP9, 3.0 BPE
2.5, 3.0
3.0
3.6R MPI Wagon

Subaru

Tribeca (November 2006 - November 2007)

View all variants

3.0, 3.6 Wagon

Subaru

WRX (2014)

View all variants

2.0t AWD Sedan (Fr Akebono 316mm Disc / Rr 316mm Disc)

Toyota

86 (2012)

View all variants

GT (277mm Disc / 286mm Solid Disc)
GTS (294mm Disc / 290mm Vented Disc)
